- Mobile and flexible , with freely controllable quantity, providing higher usage efficiency
- Effectively use idle pace , not occupying specific sites , requiring fewer resources
- No need for grid and site reconstruction , can be put into operation immedi- ately, with faster site construction speed
- Easy for overall planning , decentralized deployment, with a wider service range
- one-click ordering , seamless charging , providing better user experience.
Product Advantages
Breaks free from the constraints of the power grid , Breaks spatial limitations , Innovates the mode of operation , Improves the user experience.
- Innovation ：From "car-to-charger" to "charger-to-car s
- Flexibility: Flexible deployment, easy operation
- Energy storage :Peak-shaving and valley-filling with small-scale"energy storage stations".
- Revolution: Subversion of the "time and space concept" of charging
- Fast charging: High power with DC 60kW
- Safety: Multiple protection measurements 24h monitoring system
- Intelligence: Remote operation Remote upgrade Remote management
Management platform
BY Using the management platform , thereby improving charging efficiency and service quality, and providing users with more convenient, efficient , and secure charging services.
Revenue
Real-time statistics of chargingldischarging data and real -time updates of revenue.
Health status
Real-time monitoring of alarm data and analysis of battery health status.
Equipment Monitor
Intuitive display of
equipment distribution and precise equipment querying by name and location information .
user Information
Total number of users and number of new users, user distribution , and consumption data information .
|

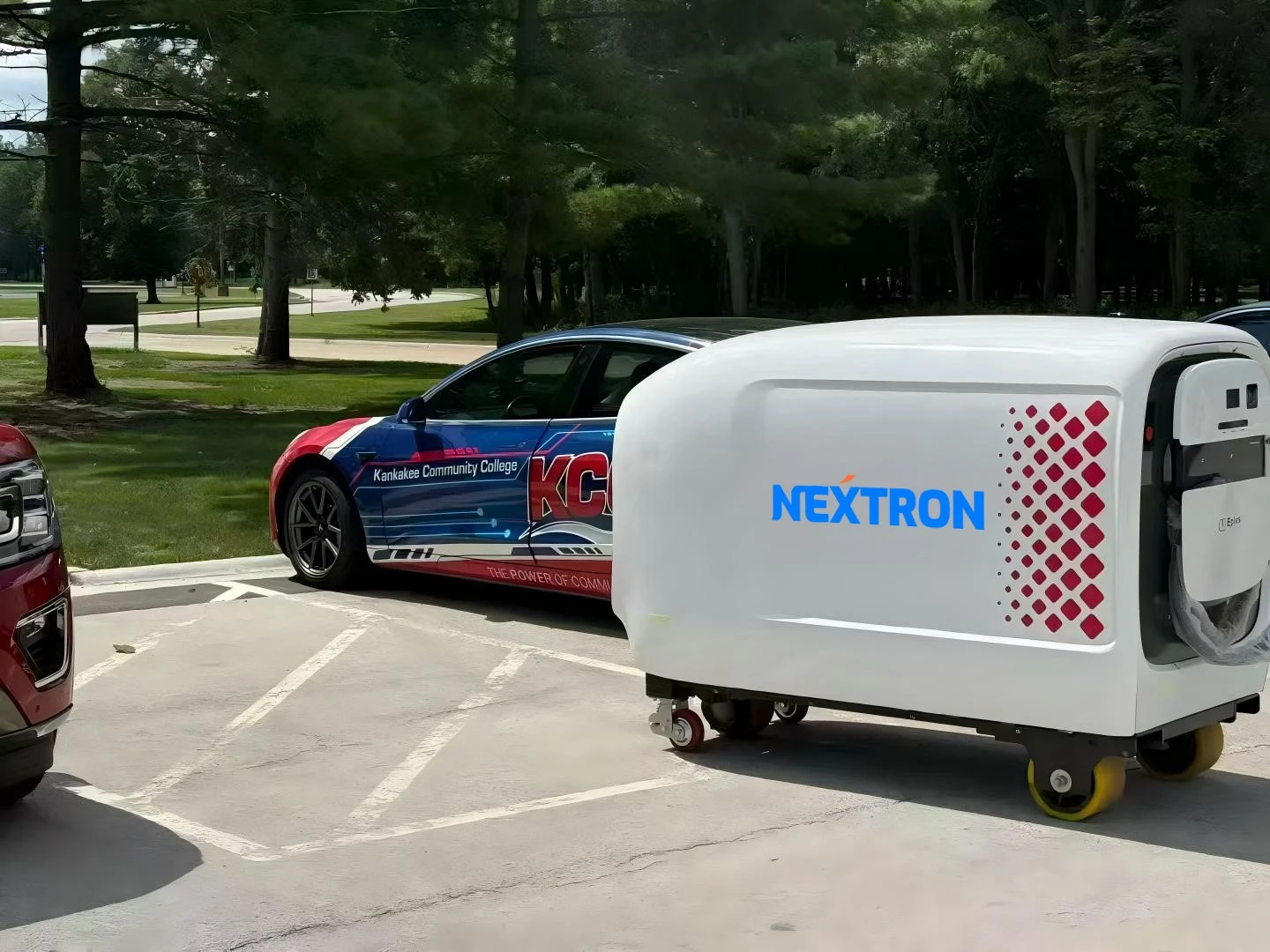

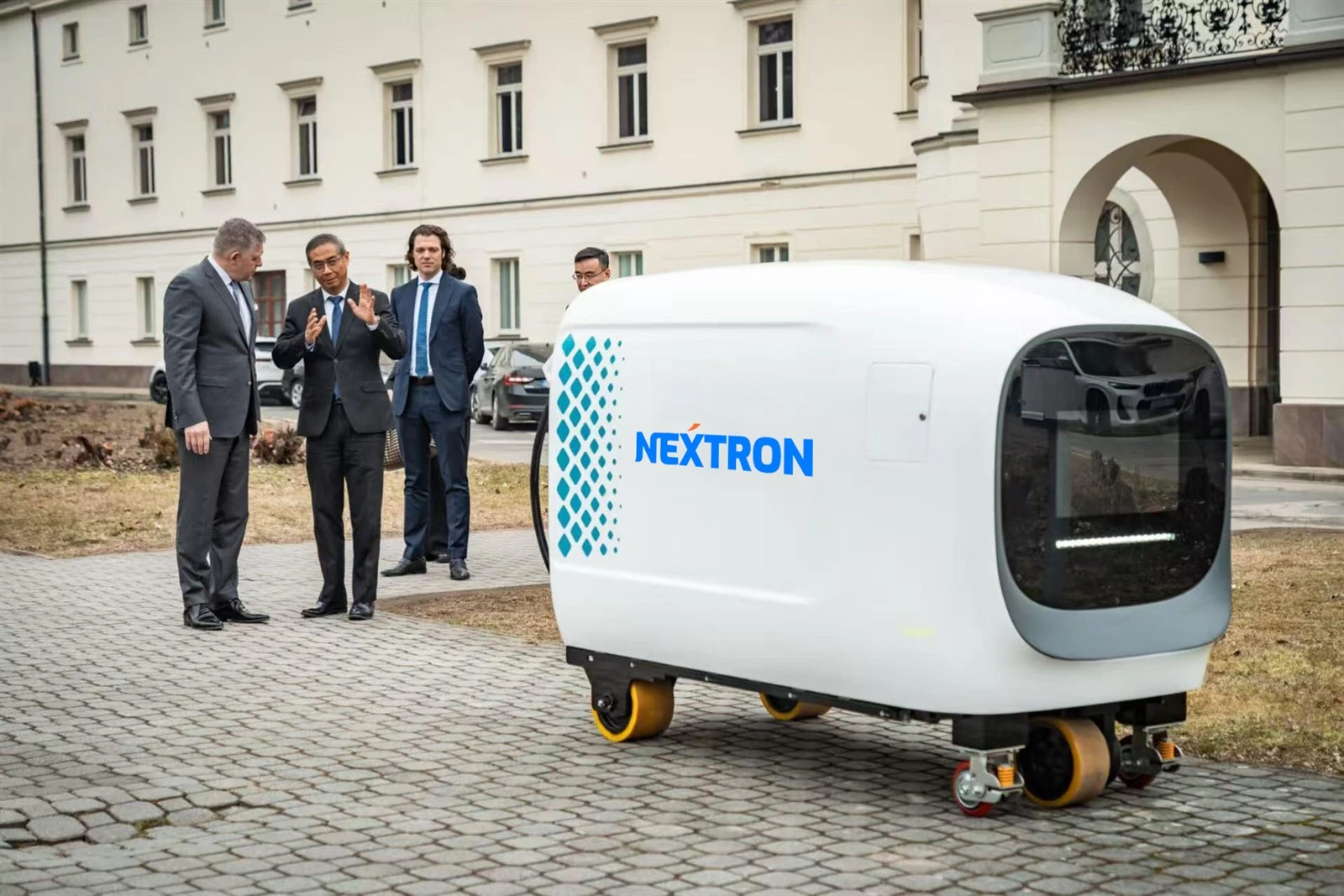

Product Pictures
|
Product Specifications | Product Specifications: |
|
|
60KW/184KWh |
Electricity capacity:184.32 kWh Battery capacity：300 Ah AC Input：Voltage range：260 Vac-530Vac /Maximum input current:43A/Connection method:3P+N+PE DC Input:Input voltage range:260Vdc-900vdc/Maximum input current:150 A/Maximum power:DC 60 kW DC Output:Voltage range :300 Vdc-1000 Vdc/Maximum output current:150 A/Maximum output power:DC 60kW/Efficiency:92% Software configuration:OCPP1.6J Level of protection：IP54 Charging method:Swipe card/touch screen/scan the code Dimensions (L*W* H):2100*1054*1400mm Weight:2250 kg Charging connector type:CCS1/NACS |
